The Theatre of Pompey, Rome

Pipeline paradata for chromakey studio recording in preperation for virtual setting: High angle camera centre viewpoint


3D visualisation interpretation
3D visualisation interpretation of the theatre of Pompey created by Martin Blazeby, KVL.


high angle camera centre calibration

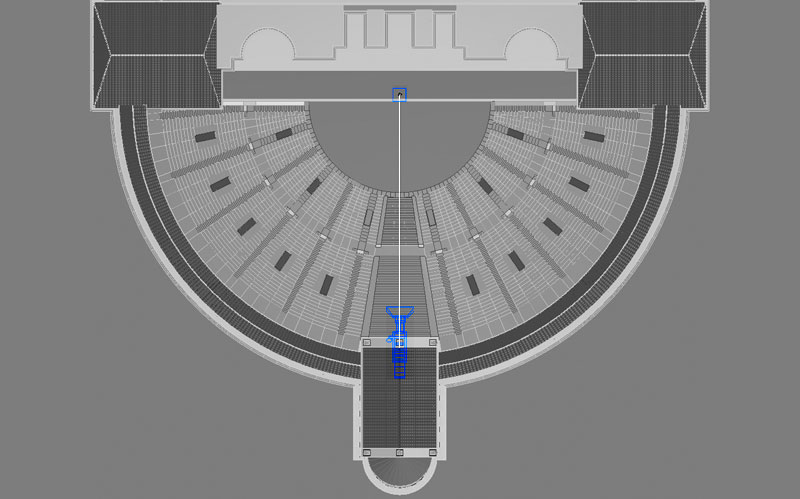

The virtual viewpoint camera is plotted in the 3d model 70m distance from the actor on the stage.


high angle camera centre calibration
Virtual calibration setup indicating actor height and studio performance area located on the centre stage area.


high angle camera centre calibration
Chromakey calibration image taken from the studio video camera.


high angle camera centre calibration

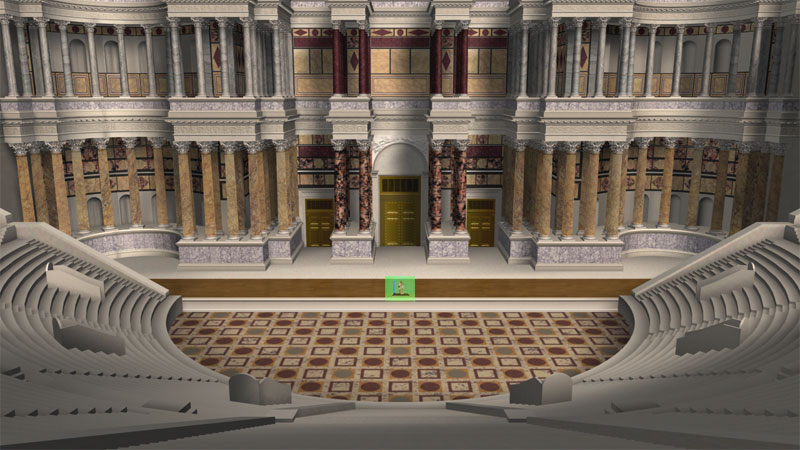

Chromakey calibration image scaled to fit with the same proportions as the virtual calibration setup.


high angle camera centre calibration

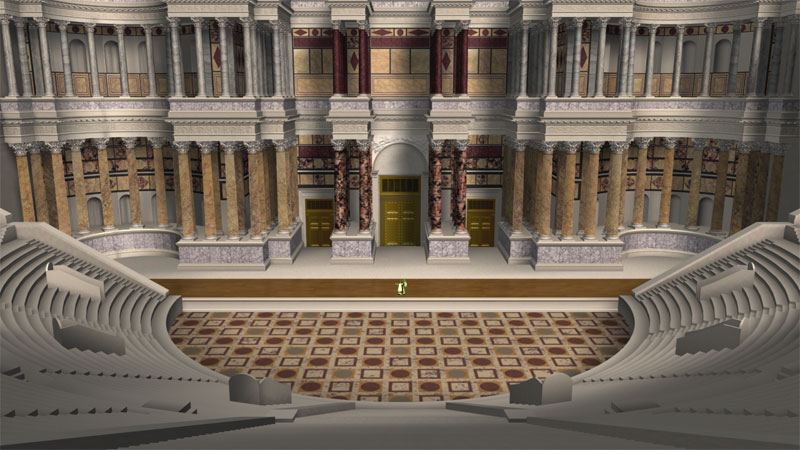

Finalised backdrop rendering ready for edited chromakey video sequence.


high angle camera centre calibration
Example screenshot showing the actual height of the composited actor.

----------
